KPT Greentherm PPR Piping
Hot & Cold-Water Networks | Industrial-Grade PPR-C Solutions by Ahuja Group
Introduction
Ahuja Group supplies and installs KPT Greentherm PPR-C piping systems, designed for hot- and cold-water networks in industrial plants. With a service life of 50+ years at up to 95°C, these pipes ensure corrosion-free durability, fusion-welded leak-proof joints, and excellent chemical resistance
Dealership Certification
KPT PPR Pipes – The Trusted Choice for Durable & Leak-Proof Piping Systems
Ahuja Group is a proud authorized distributor of KPT Greentherm & Pneumato PPR piping systems in India. This partnership enables us to deliver world-class piping solutions designed for compressed air, industrial water, and various other applications. KPT PPR pipes are known for their exceptional strength, corrosion resistance, easy installation, and long service life.
Product Portfolio
Our comprehensive range of PPR-C pipes and fittings ensures leak-proof, durable and efficient piping solutions for industrial applications.
PP-R / PP-R-GF Pipes
Single-layer (PN6/10/16/20) and triple-layer UV-shielded or glass-fibre reinforced core pipes for long life and reduced expansion.
20 mm – 400 mm OD
Injection-Moulded Fittings
Sockets, elbows (90°/45°), equal tees, end caps, unions, flanges.
20 – 160 mm
Brass / SS Insert Fittings
Male/female threaded adapters, transition elbows, unions, wall plates.
20 – 110 mm
Valves
PP-R ball valves, union ball valves, diaphragm & check valves, air-vent valves.
20 – 110 mm
Fabricated Specials
Segment-welded large-diameter elbows, tees, crosses, reducers, stub-flanges & collars.
125 – 400 mm
Reducers & Transition Items
Step-down reducers, PP-R × GI/copper/brass transitions, clamp saddles.
20 – 160 mm
Accessory Components
Pipe clips, sliding supports, expansion loops, fixing brackets, insulation sleeves.
Fusion Equipment & Consumables
Socket fusion irons, butt fusion machines, electro-fusion units, alignment clamps, calibration tools.
Products

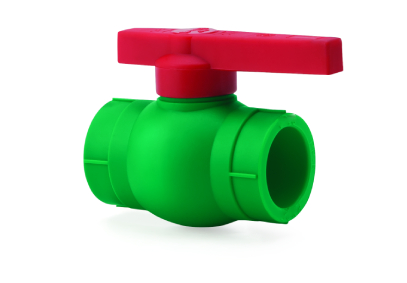

Ball Valve
Ball Valve

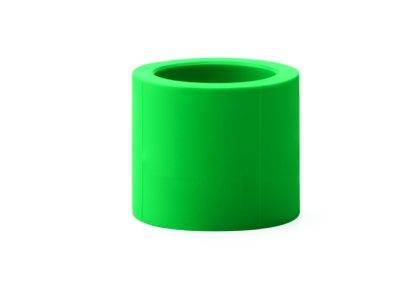

Coupler
Coupler

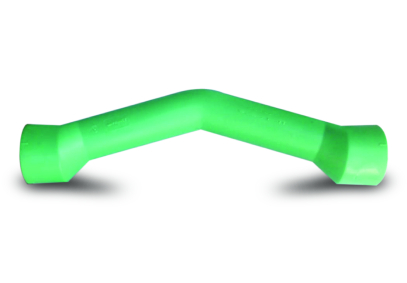

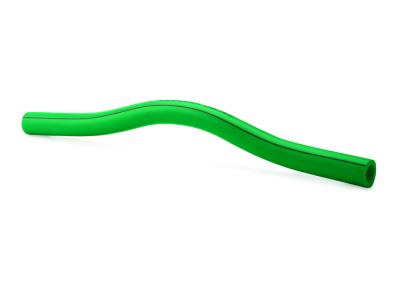

Cross Over
Cross Over
Cross Over (Moulded)
Cross Over (Moulded)

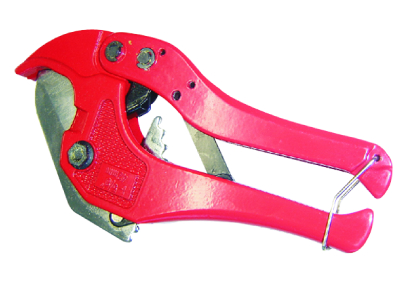

Cutter
Cutter

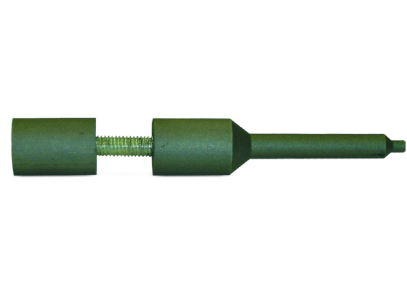

Die Set HSN
Die Set HSN
Elbow 45°
Elbow 45°

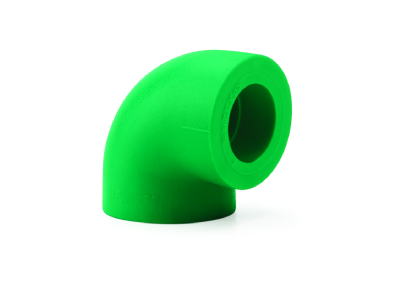

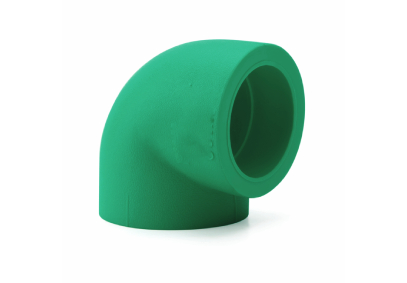

Elbow 90°
Elbow 90°

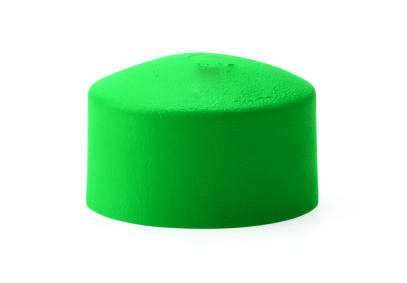

End Cap
End Cap

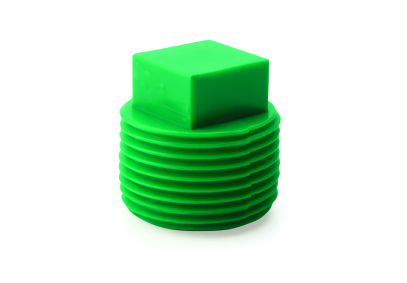

End Plug
End Plug

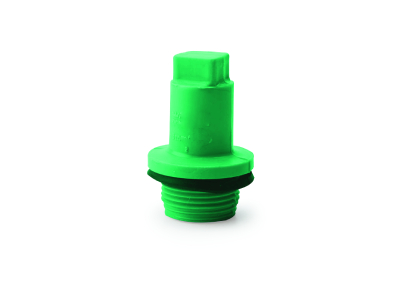

End Plug ( Extended )
End Plug ( Extended )
Equal Tee
Equal Tee

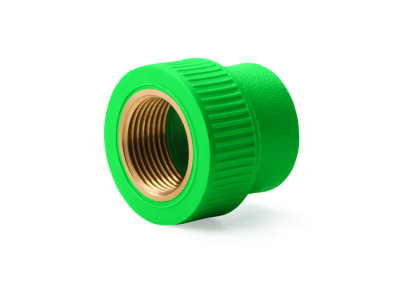

Female Threaded Adaptor
Female Threaded Adaptor

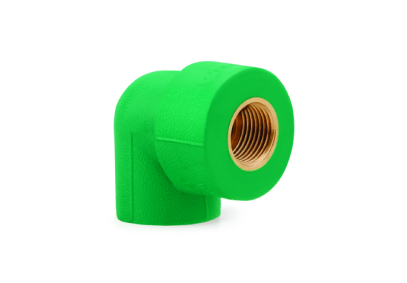

Female Threaded Elbow
Female Threaded Elbow
Female Threaded Elbow with Support
Female Threaded Elbow with Support
Female Threaded Tee
Female Threaded Tee
Female Threaded Union
Female Threaded Union
Flange
Flange
Flange Core
Flange Core

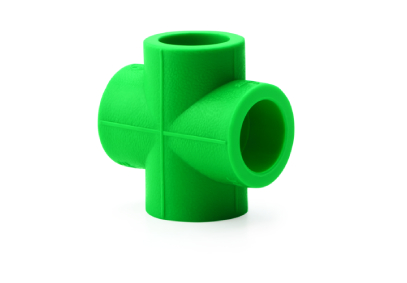

Four Way Tee
Four Way Tee

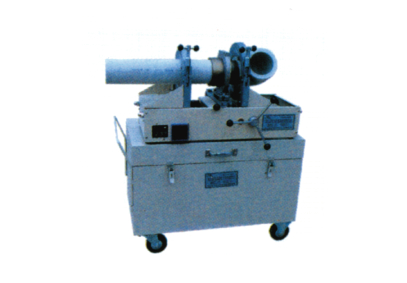

Large Diameter Welding Device
Large Diameter Welding Device

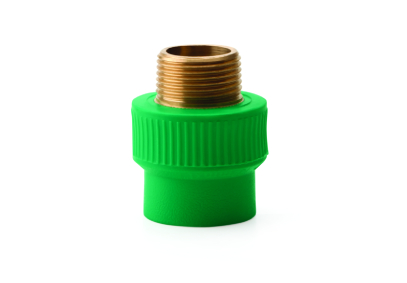

Male Threaded Adaptor
Male Threaded Adaptor

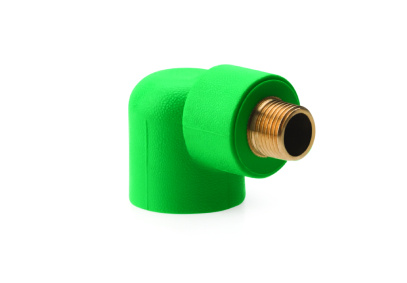

Male Threaded Elbow
Male Threaded Elbow
Male Threaded Tee
Male Threaded Tee

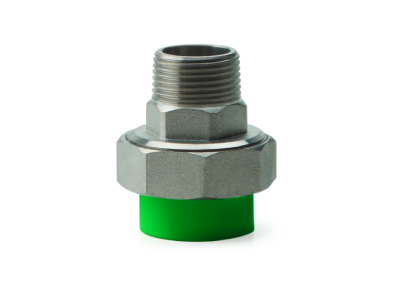

Male Threaded Union
Male Threaded Union

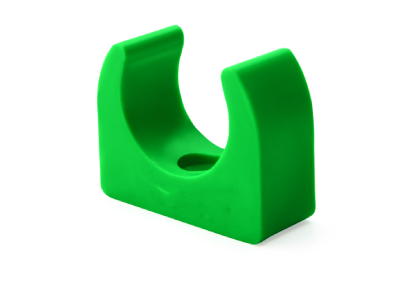

Pipe Clamp
Pipe Clamp

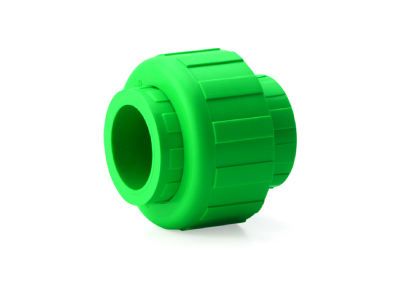

Plain Union
Plain Union
Reducer
Reducer
Reducing Elbow
Reducing Elbow

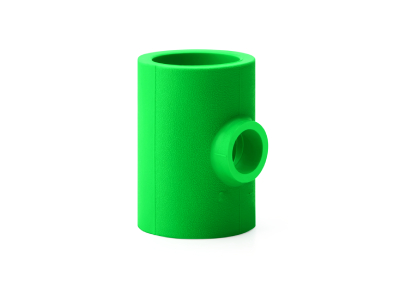

Reducing Tee
Reducing Tee

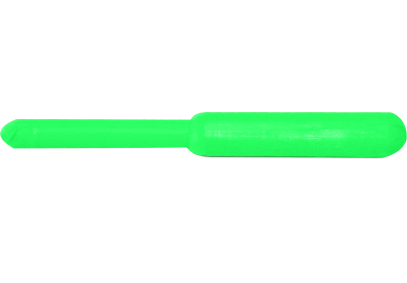

Repair Bar
Repair Bar
Repair Section
Repair Section
Saddle (Plain)
Saddle (Plain)

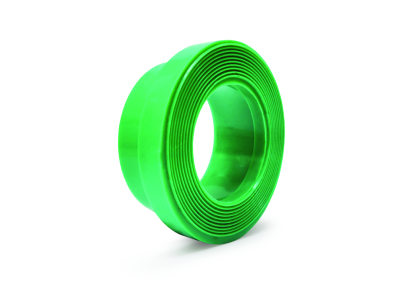

Stub End
Stub End

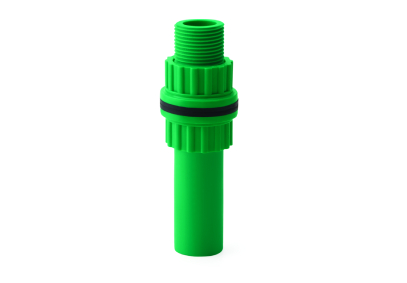

Tank Connector
Tank Connector
Tank Connector (Short)
Tank Connector (Short)

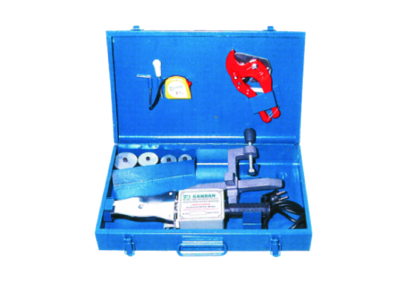

Welding Device
Welding Device

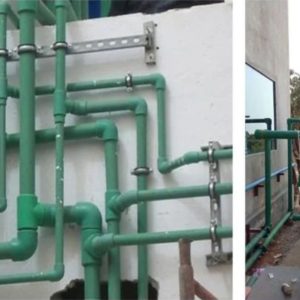

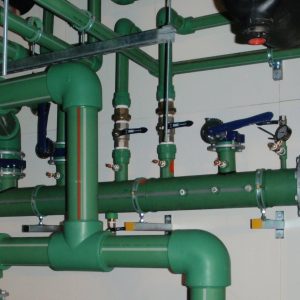

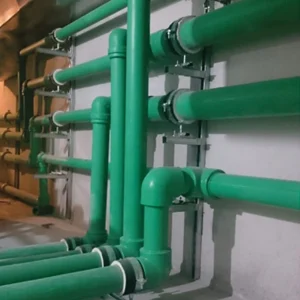

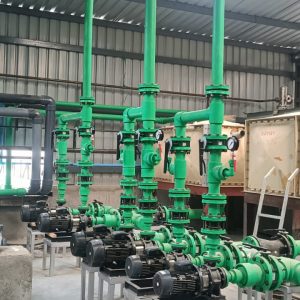

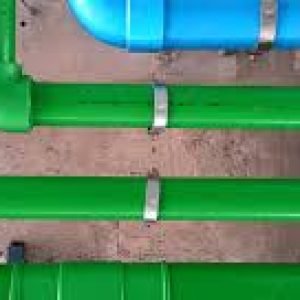

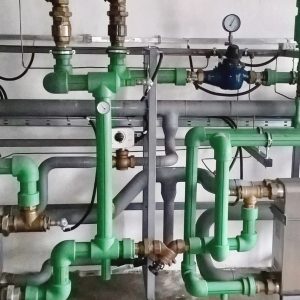

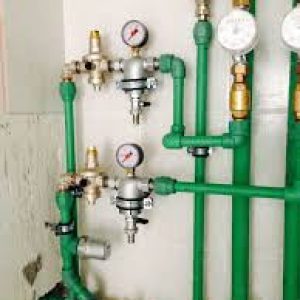

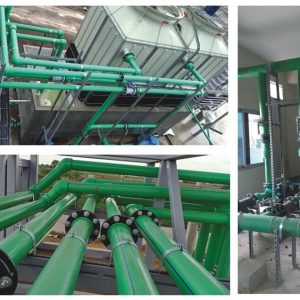

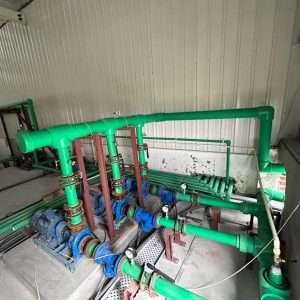

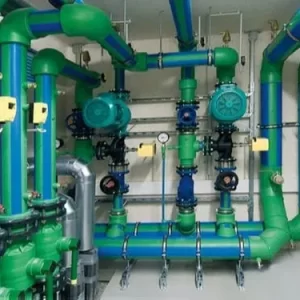

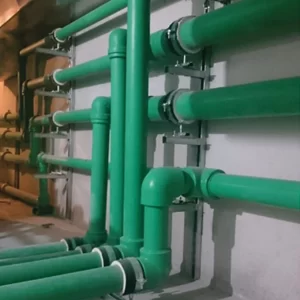

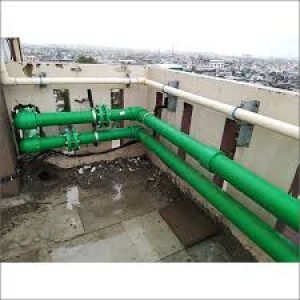

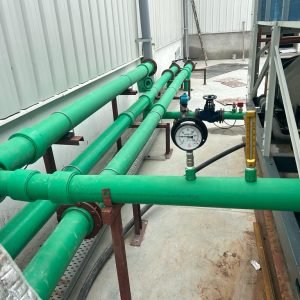

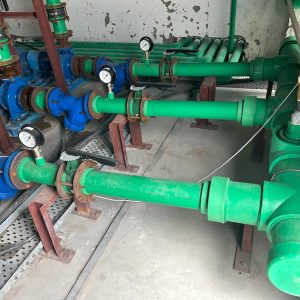

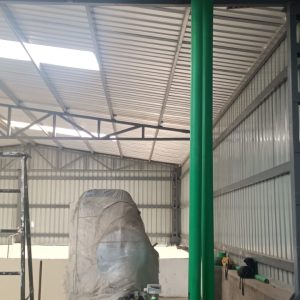

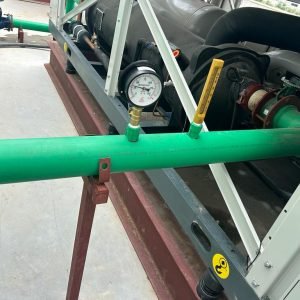

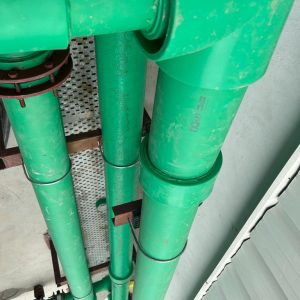

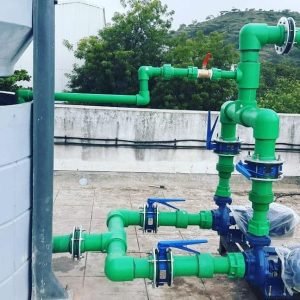

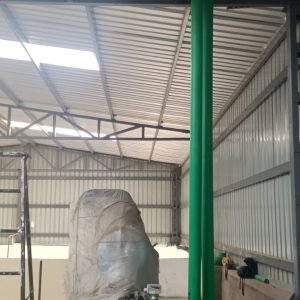

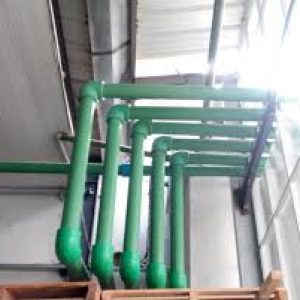

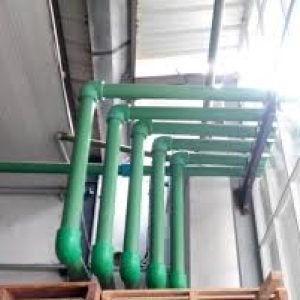

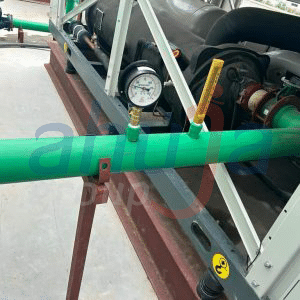

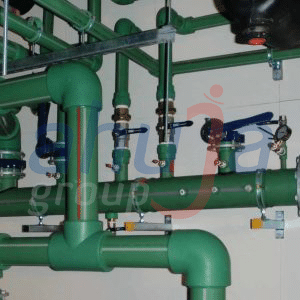

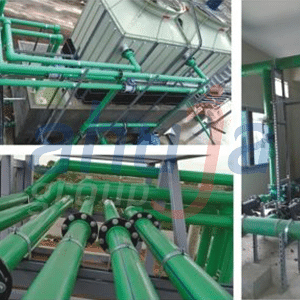

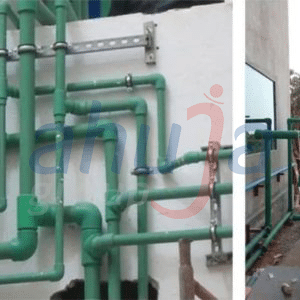

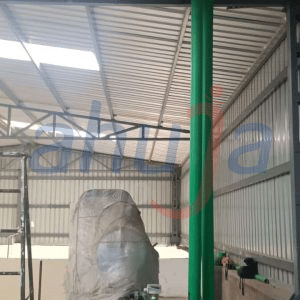

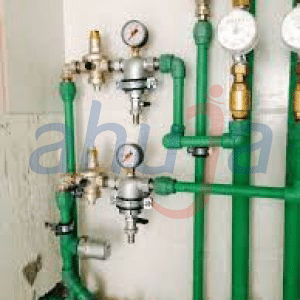

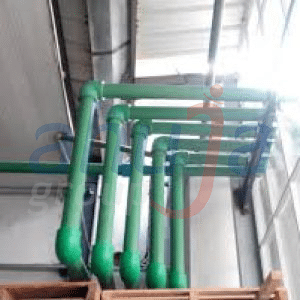

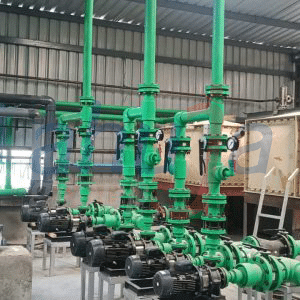

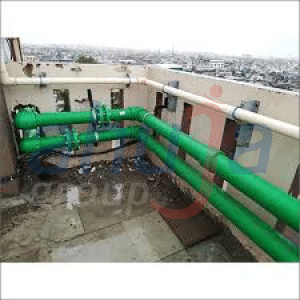

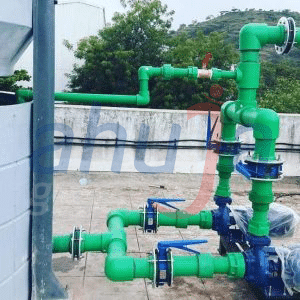

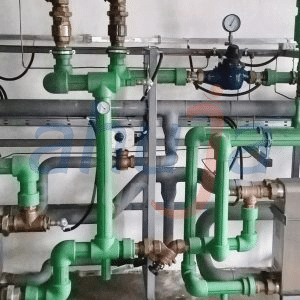

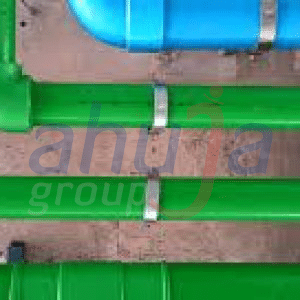

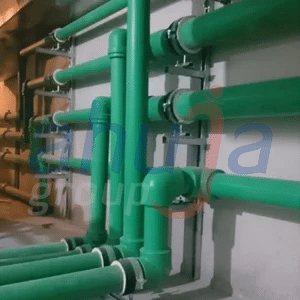

Our Installation
Explore Our Video Gallery
Catalogues
| Image | Title | Type | Size | Counter | Link |
|---|---|---|---|---|---|
|
|
pdf |
4 MB |
0 |
||
|
|
pdf |
2 MB |
0 |
Key Features
Why Industries Prefer KPT Greentherm PPR-C
- High-Temperature Endurance – continuous service up to 95°C (short peaks 110°C).
- Exceptional Chemical Resistance – unaffected by acids, alkalis, glycol, RO permeate, and CIP detergents.
- Ultra-Smooth Bore (Ra ≤ 0.2 μm) – maintains flow efficiency and avoids scaling/bio-film.
- Low Linear Expansion – glass-fibre reinforced core reduces expansion by up to 75%.
- Thermal Insulation Advantage – 30% lower heat loss than steel/copper.
- Impact & Vibration Resistance – withstands hammer pressures up to 20 bar.
- Fusion-Welded Leak-Proof Joints – monobloc fusion ensures 100% pipe strength.
- Non-Toxic & Food-Grade – safe for pharma, food & beverage, and potable water.
- UV-Stable & Fire-Safe – colour-stable, self-extinguishing, halogen-free.
- 10-Year Manufacturer Warranty – when installed with OEM fusion tools by certified technicians.
Typical Applications
Food & Beverage
Pharma & Biotech
Automotive & Paint Shops
Textile & Dyeing
Chemical & Petrochemical
HVAC (Industrial)
Electronics / Semiconductor
PET & Plastics
Power & Renewable
Technical Specifications
Parameter
Specification
Notes
Pressure Ratings (PN)
PN 6 · PN 10 · PN 16 · PN 20
Suitable for cold water, chilled water, hot water, glycol loops
Pipe Constructions
• Single-Layer PP-R
• Triple-layer UV-shield / glass-fibre core
Longer life & low expansion
Nominal Diameter Range
20 mm – 400 mm OD
Supplied in 4 m and 5.8 m sticks
Material Grades
PP-R Type 3 (PP-R 80 / PP-R 100) · PP-R-GF (glass-fibre reinforced)
Food-grade, heavy-metal-free
Temperature Window
−20 °C to +95 °C (short peaks to 110°C)
50-year design life at rated pressure/temperature
Fitting Types
• Injection-Moulded elbows, tees, couplers, valves (20 – 160 mm)
• Fabricated specials (≥125 mm)
Includes brass/SS threaded inserts
Compliance
DIN 8077/8078, ISO 15874, IS 15801, NSF/ANSI 61 (potable water)
Internationally certified
Why Choose KPT Greentherm?
Why Choose These Industry-Leading PP-R Brands
Proven Indian Manufacturing
ISO-certified, fully automated extrusion & moulding plants.
World-Class Raw Materials
only virgin PP-R Type 3 and high-modulus PP-R-GF resins from top suppliers.
Complete Range
20 mm to 400 mm OD, PN6–PN20, plus fittings, valves, specials, fusion tools.
Reliability in Harsh Conditions
proven success in food & beverage, pharma, textiles, automotive, and chemical industries.
Third-Party Certified
DIN, ISO, NSF/ANSI standards for potable & industrial water.
Third-Party Certified
10-year product warranty, site audits, training, and spare-parts availability
Why Buy from Ahuja Group?
Authorised distributor for KPT Greentherm.
Ready stock up to 110 mm, larger sizes on quick order.
Certified installation team with leak-proof guarantee.
Free site survey & pipeline sizing support.
24×7 service support.
FAQs
Which PN rating should I choose for my water line?
- Process water up to 45°C: PN6 or PN10.
- Hot water loops (60–80°C) & chilled water: PN16.
- High-temperature CIP or 90°C glycol service: PN20.
What is the maximum available size?
KPT Greentherm is available from 20 mm to 400 mm OD.
Can it handle aggressive chemicals or RO water?
Yes. PPR-C is chemically inert and unaffected by acids, alkalis, detergents, and RO permeate.
How strong are the joints?
Fusion-welded joints become homogeneous with the pipe wall, offering 100% leak-proof strength.
How long does it last?
Designed for a 50-year service life under rated pressure and temperature.
Upgrade to KPT Greentherm Industrial PPR Piping Today
Ahuja Group is an authorised distributor and certified installer of KPT Greentherm PPR-C systems in Rajasthan. We provide:
- Free site survey & sizing support
- Fusion-certified installation team
- Ready stock up to 110 mm and quick sourcing for larger sizes
- 24×7 service & technical support
📞 +91 70235 40310 | ✉️ [email protected]
