Introduction
StackEasy® is an Indian‑engineered range of material‑handling equipment built to make lifting, stacking and pallet movement safer, faster and more ergonomic on the factory floor. From manual hydraulic stackers to fully electric reach trucks, every model features heavy‑duty steel construction, certified hydraulics and a durable powder‑coat finish. As an authorised StackEasy partner, Ahuja Group stocks, installs and services the complete portfolio—helping plants cut manual‑handling injuries, boost throughput and comply with workplace‑safety norms.
Product Portfolio
Manual Hydraulic Stackers
500 kg – 2 t
1.6 m – 3.0 m
SE-MS10, SE-MS20
Semi-Electric Stackers
500 kg – 2 t
2.5 m – 4.5 m
SE-SS15, SE-SS20
Electric Reach / Straddle Stackers
1.2 t – 1.6 t
3.5 m – 5.5 m
SE-ERS12
Hand Pallet Trucks
2.5 t standard, 3 t heavy
200 mm stroke
SE-HPT25, SE-HPT30
Electric Pallet Trucks
1.5 t – 2 t
120 mm stroke
SE-EPT15
Scissor Lift Tables – Mobile
500 kg – 1 t
SE-SLT50, SE-SLT100
20 mm – 400 mm OD
Scissor Lift Tables – Stationary
1 t – 5 t
SE-SLS30
20 mm – 400 mm OD
Drum-Handling Equipment
205 L drums
SE-DLT
20 mm – 400 mm OD
Goods Lifts (Wall-Mounted)
205 L drums
SE-GL1000
20 mm – 400 mm OD
Goods Lifts (Wall-Mounted)
6 t – 10 t dynamic
300 mm lip
SE-DL6
Products

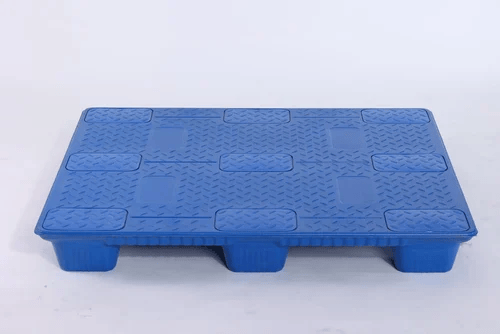

Blow Moulded Pallets
Blow Moulded Pallets
Fiber Hand Trolley
Fiber Hand Trolley

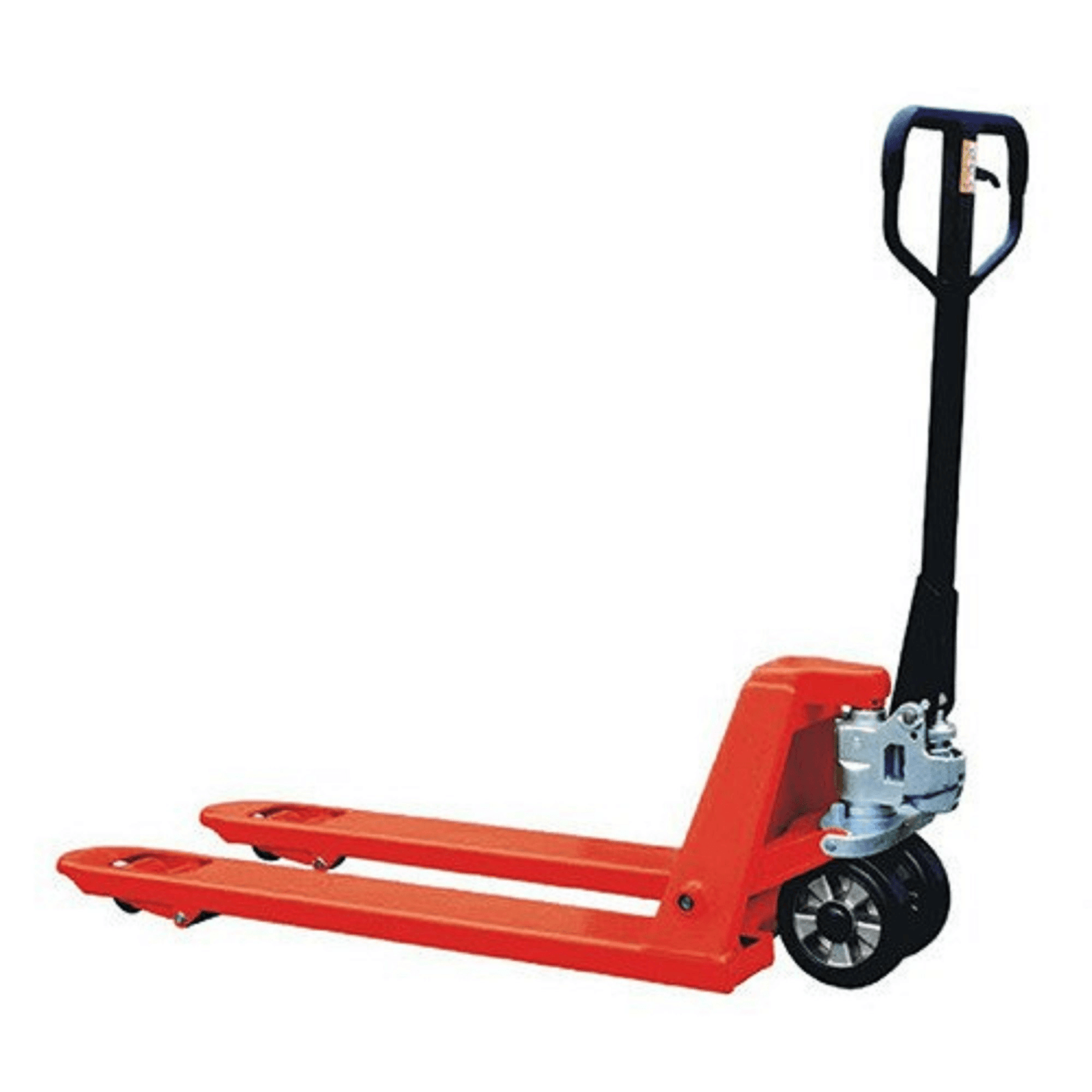

Hand Pallet Truck
Hand Pallet Truck

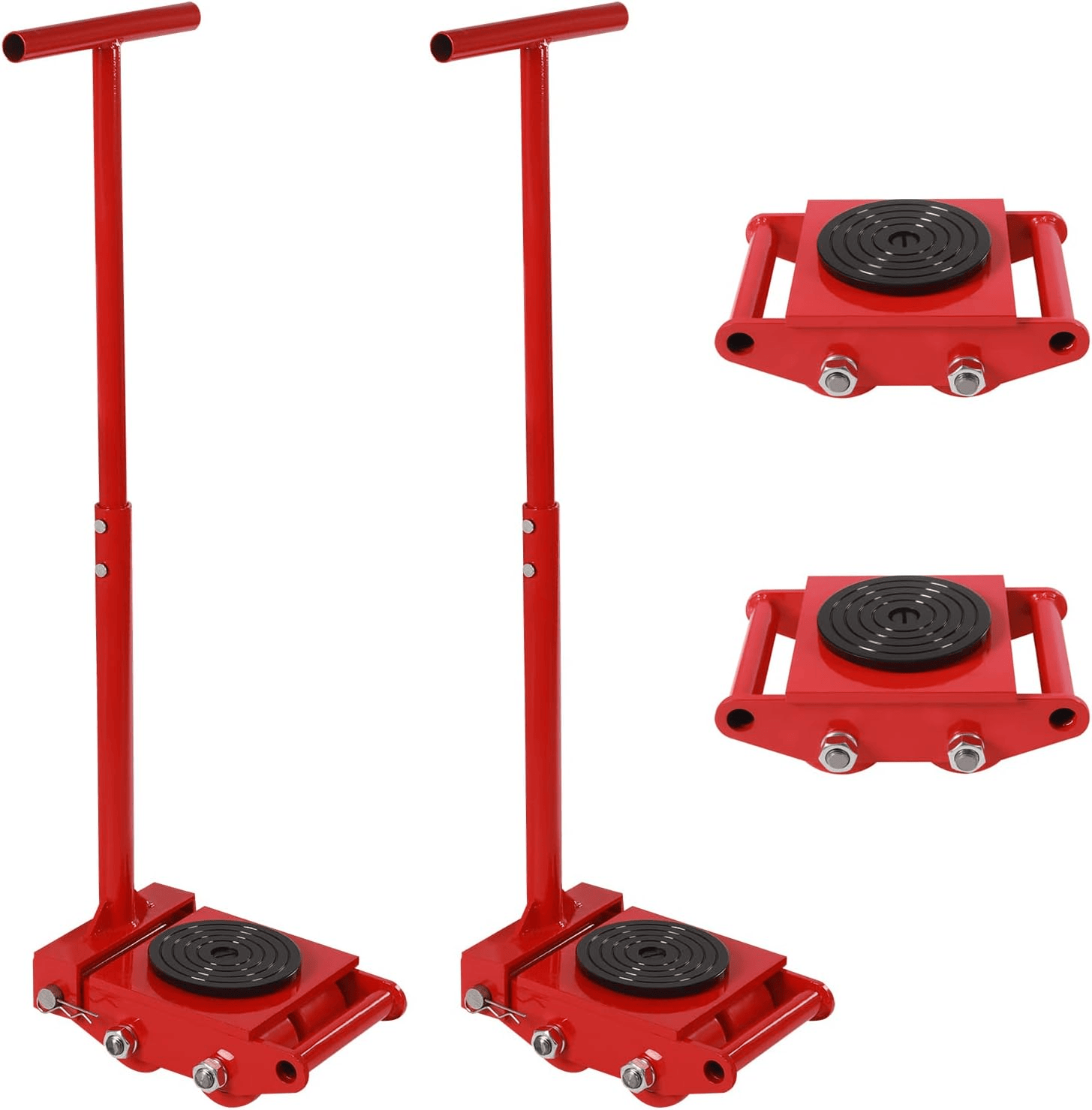

Heavy Duty Industrial Skates
Heavy Duty Industrial Skates

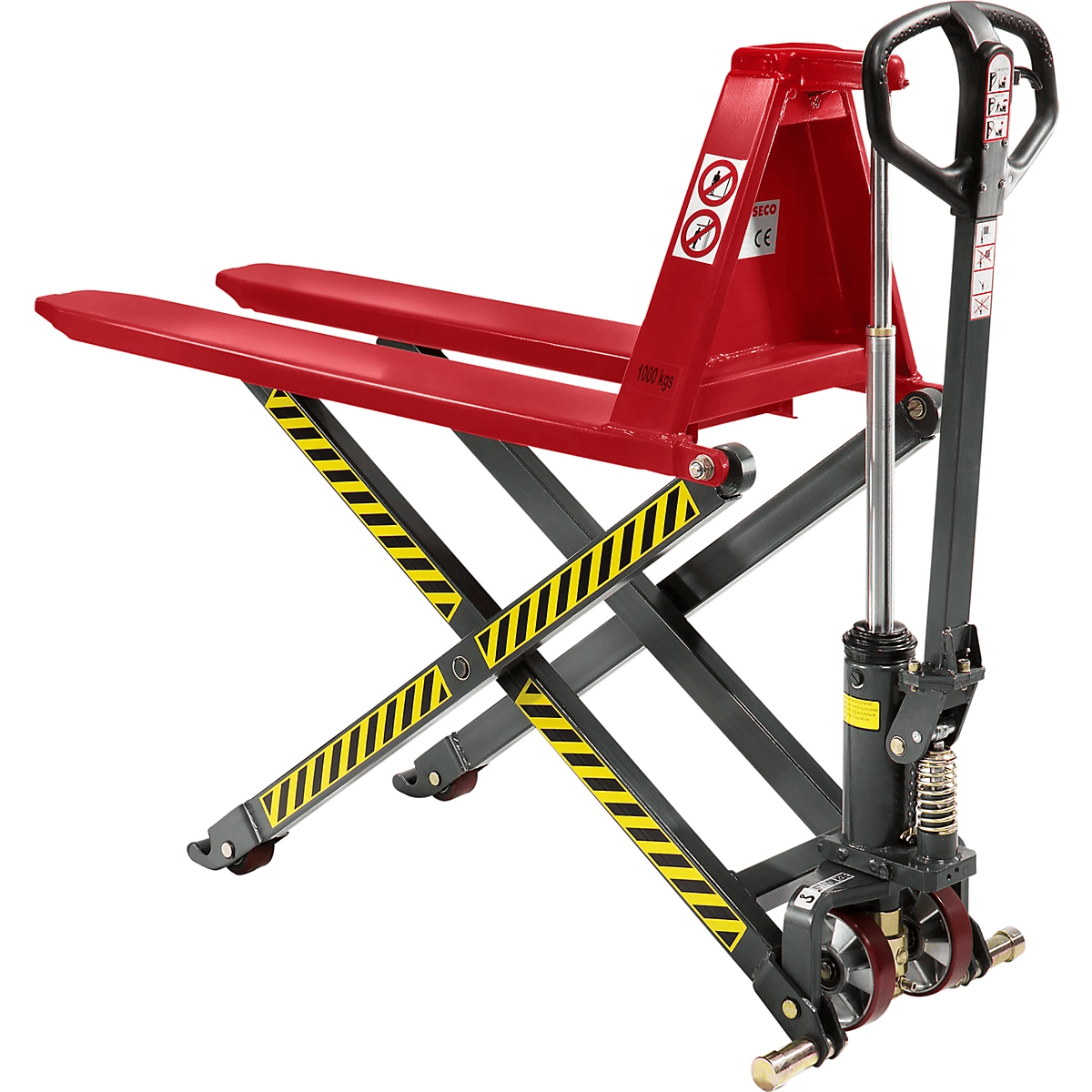

High Lift Pallet Truck
High Lift Pallet Truck

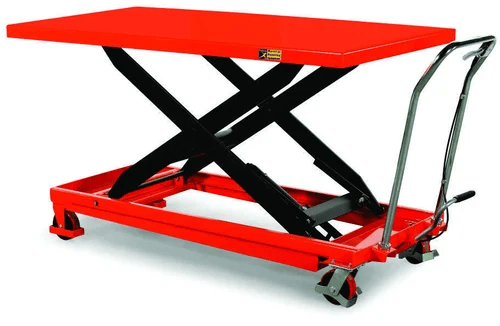

Hydraulic Lift Table Truck
Hydraulic Lift Table Truck

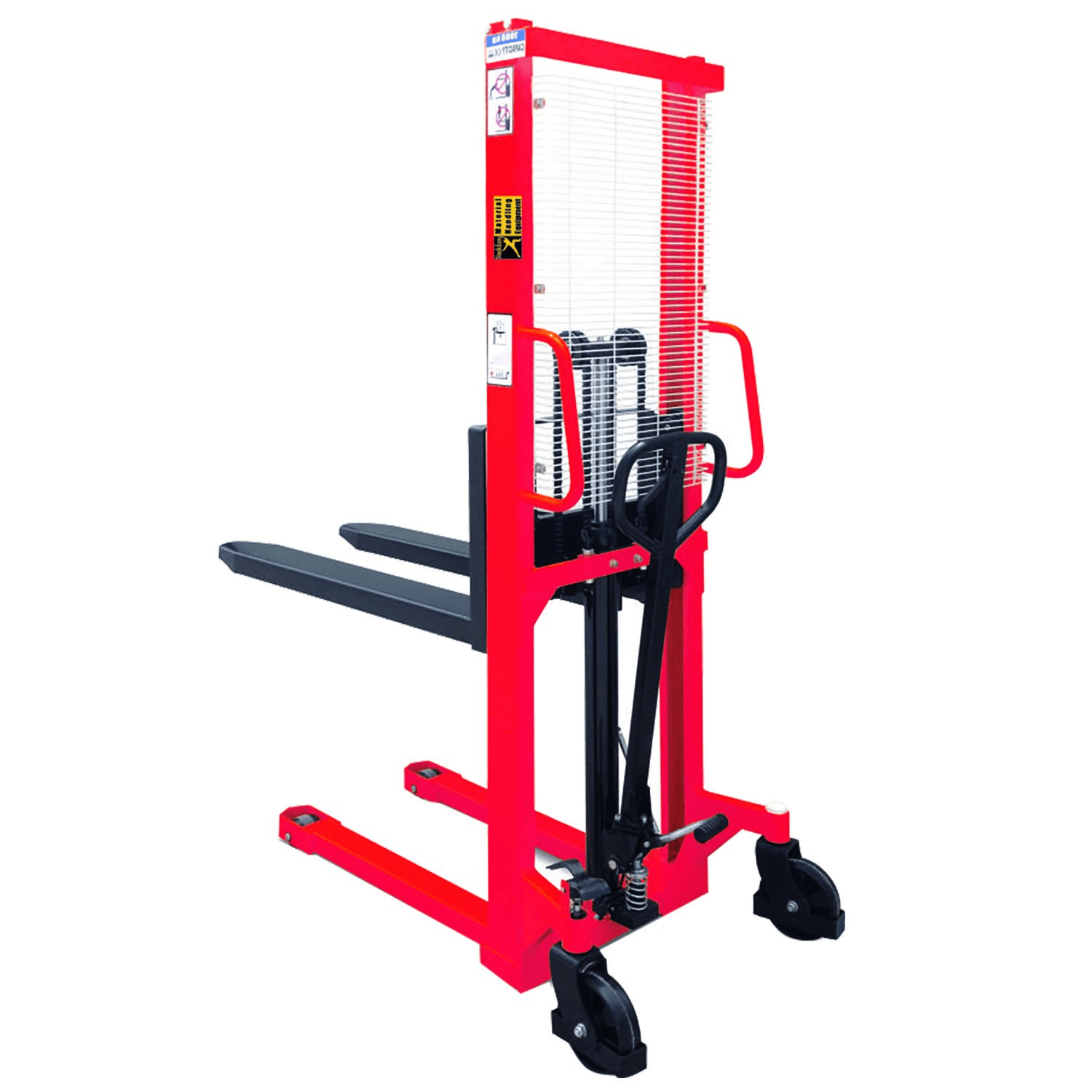

Hydraulic Manual Stacker
Hydraulic Manual Stacker

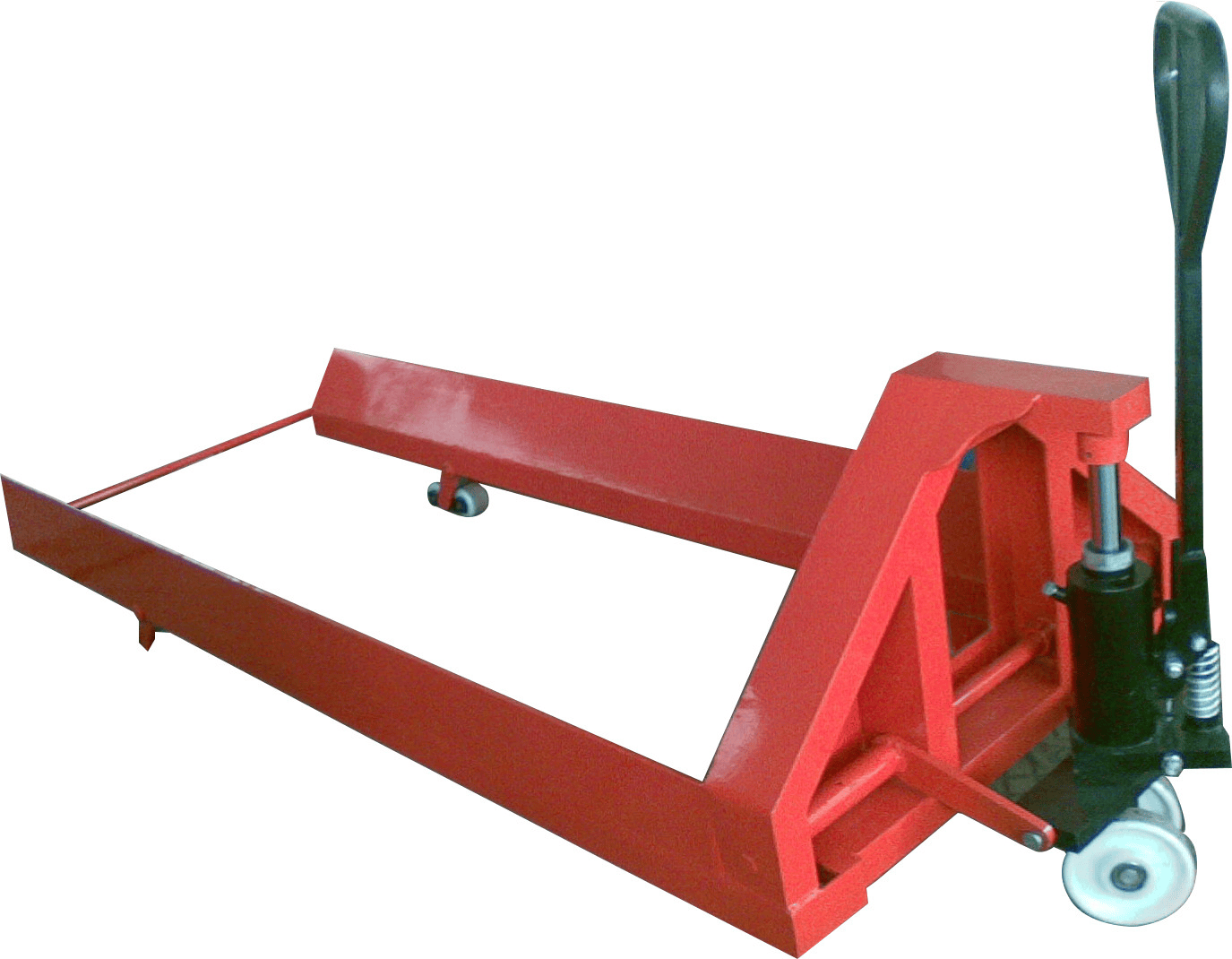

Reel Pallet Truck
Reel Pallet Truck

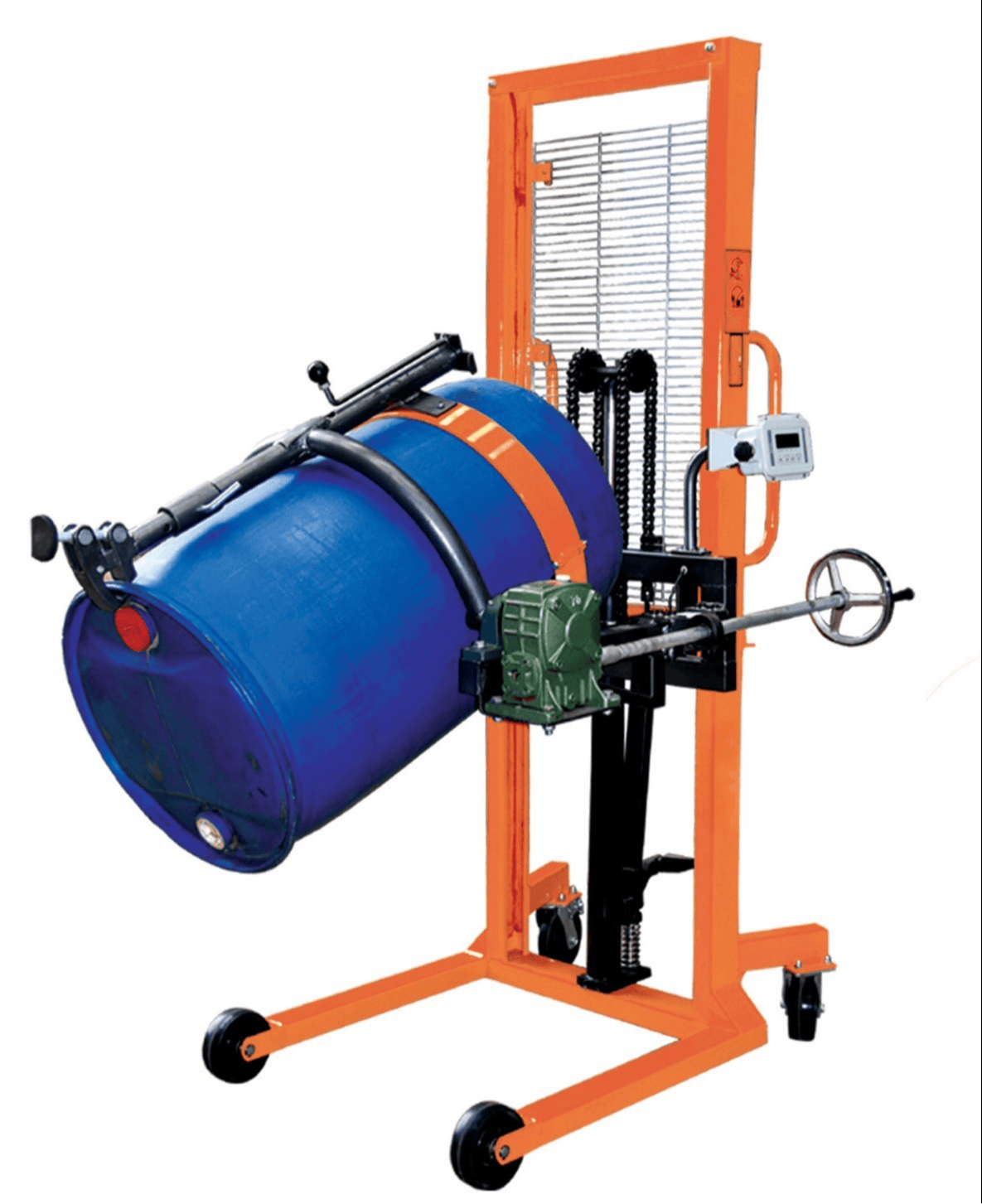

Rotary Drum Handling Stacker
Rotary Drum Handling Stacker

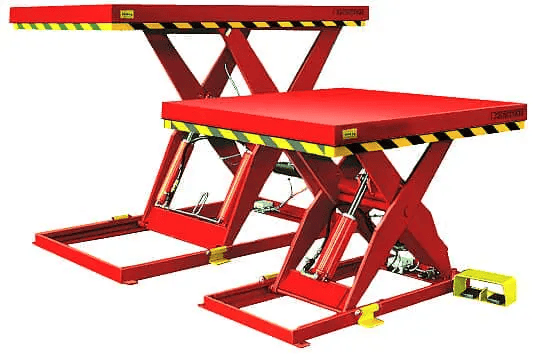

Scissor Lift
Scissor Lift

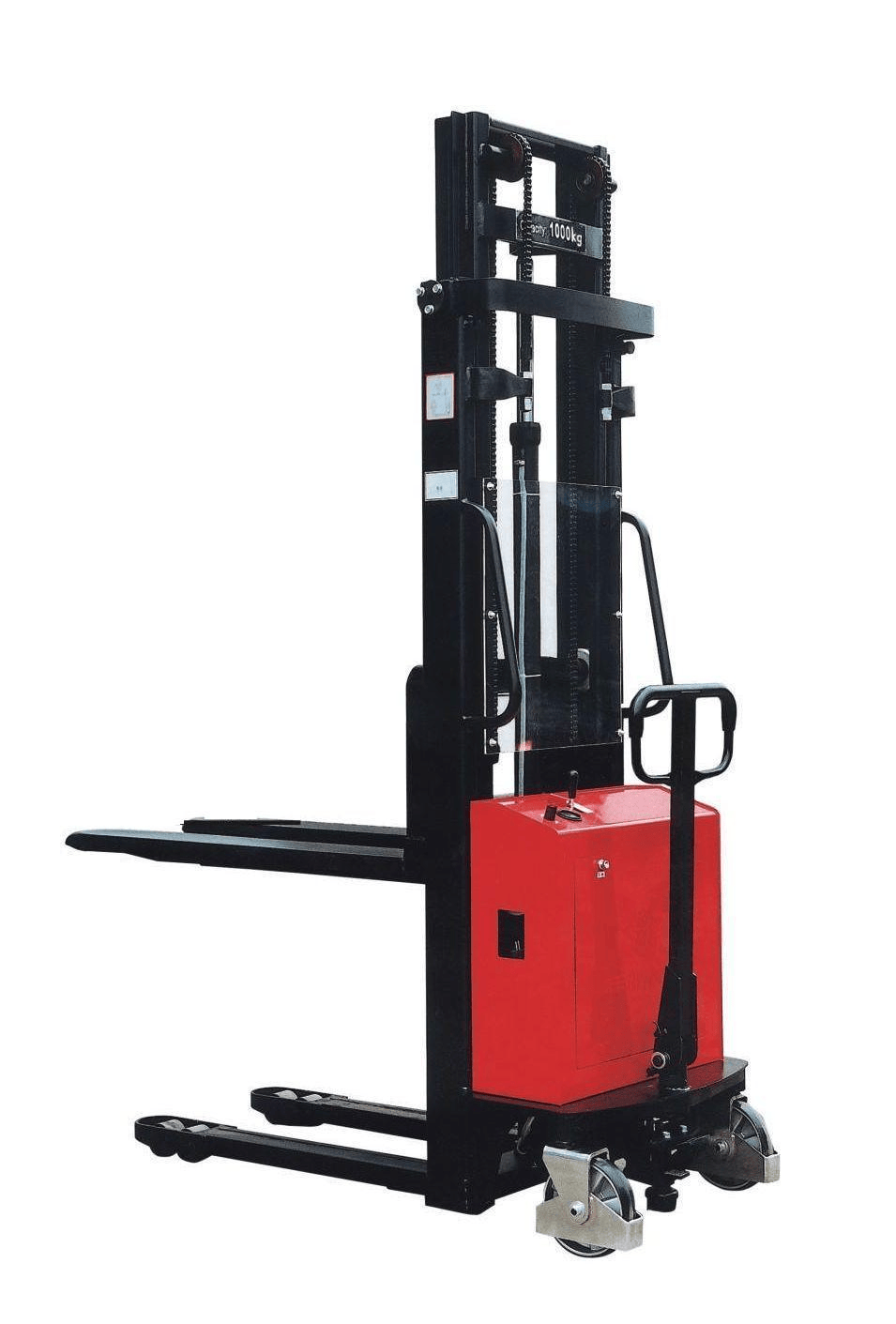

Semi Electric Stacker
Semi Electric Stacker

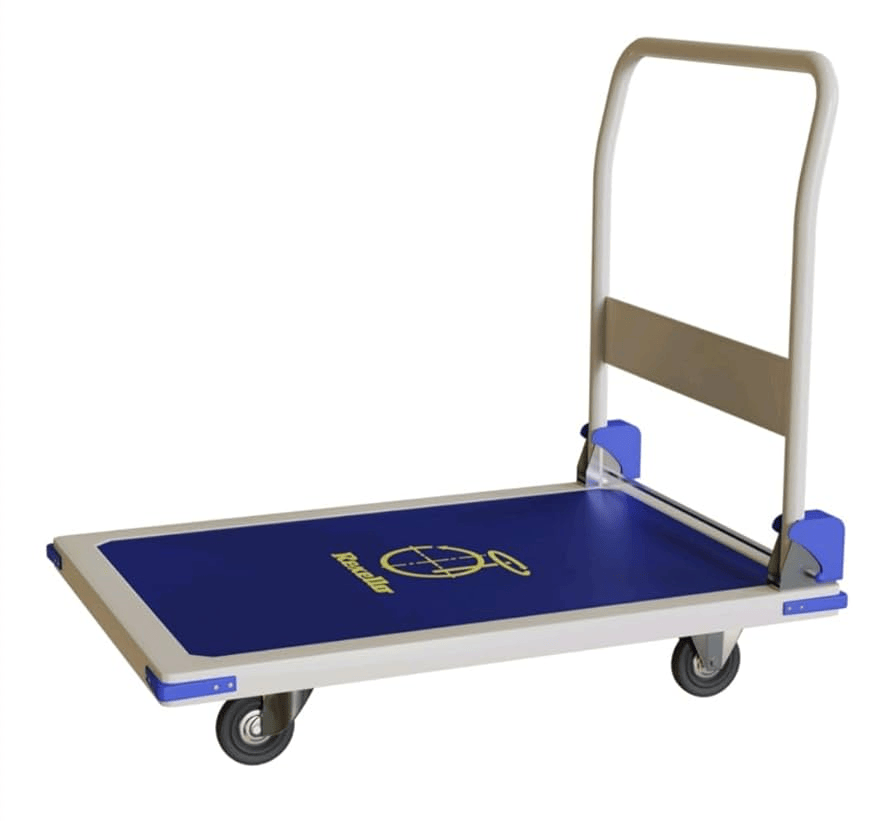

Steel Hand Trolley
Steel Hand Trolley

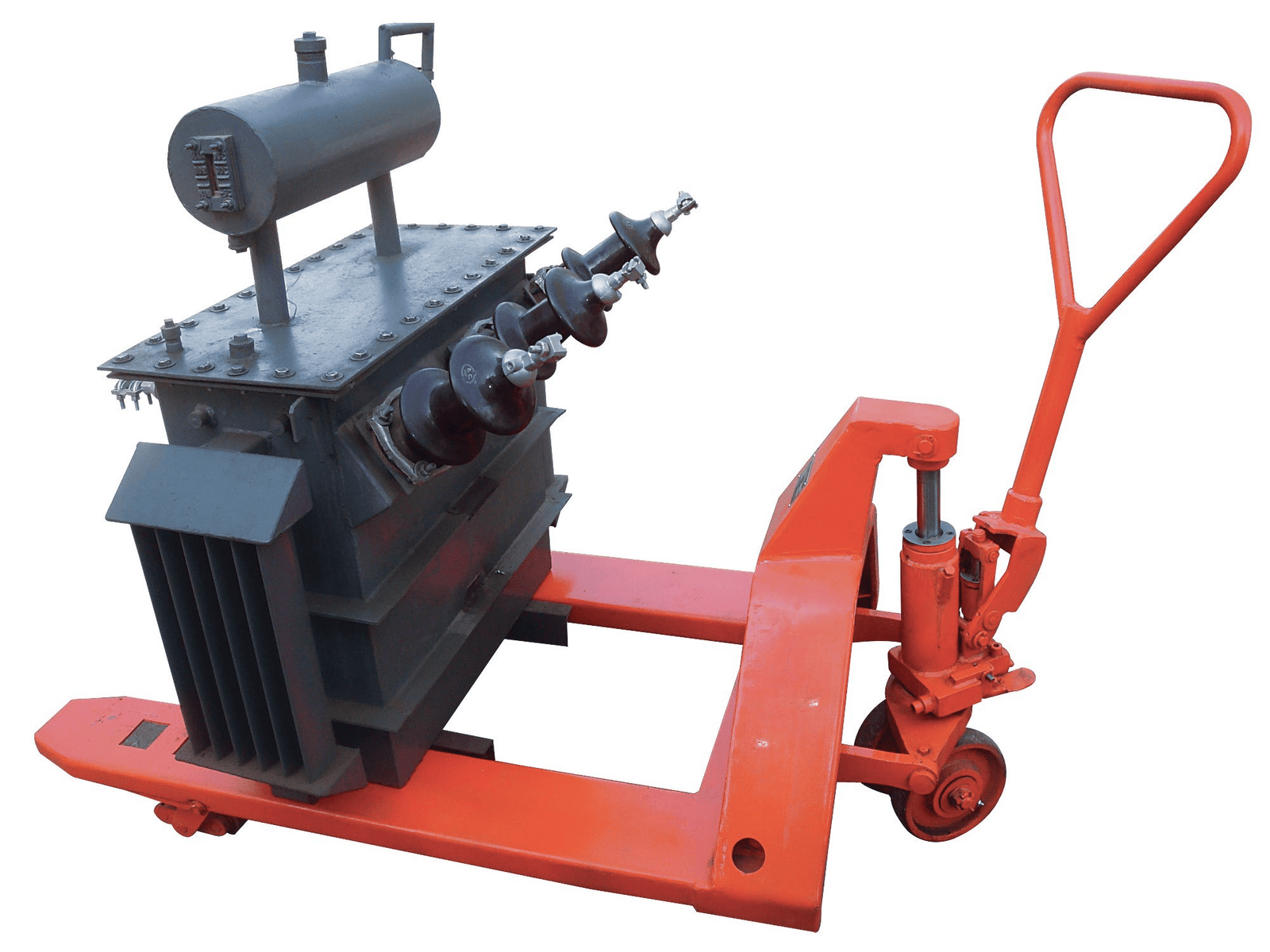

Transformer Pallet Truck
Transformer Pallet Truck
Explore Our Video Gallery

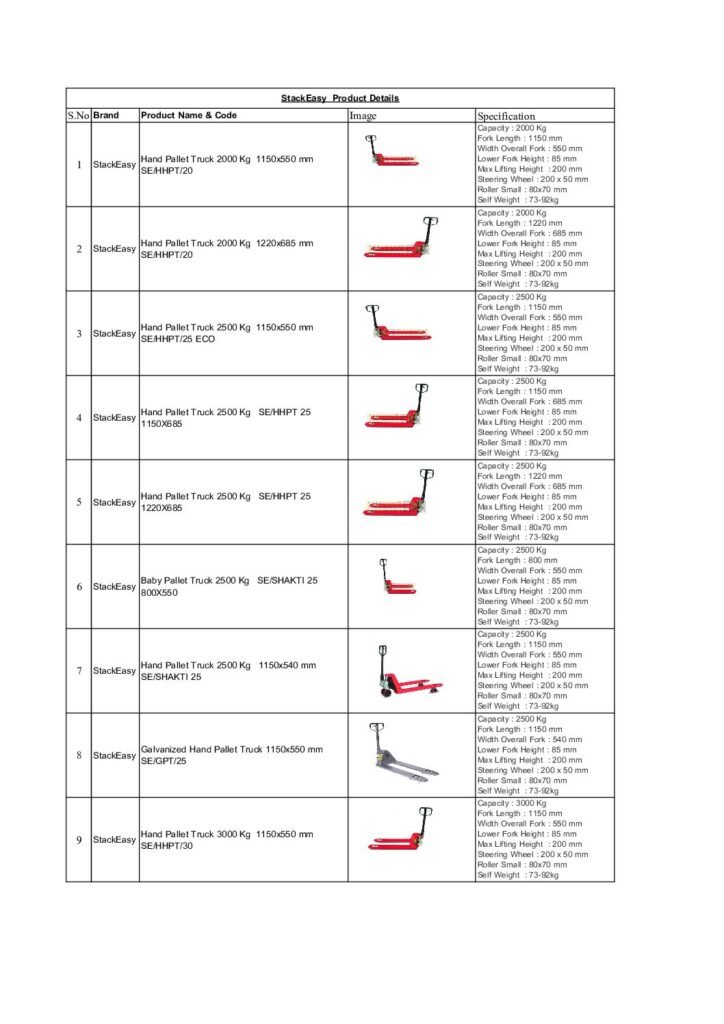

Catalogues
| Image | Title | Type | Size | Counter | Link |
|---|---|---|---|---|---|
| pdf | 928 KB | 22 | ||
| pdf | 7 MB | 20 |
Key Features
- Rugged IS 2062 steel chassis and reinforced mast profiles.
-
Chrome-plated pump pistons; German PU steering wheels for low
rolling resistance - CE overload-protection valve prevents misuse beyond rated capacity.
- Ergonomic tiller with neutral braking & belly switch on electric units.
-
Maintenance-free 24 V/160-210 Ah traction battery with on-board charger
(electric models). -
Quick-fit attachments: reel rams, fork extensions, drum clamps, work
platforms -
Safety yellow powder-coat; optional stainless-steel pallet trucks for
food/pharma -
12-month comprehensive warranty; spares and service kits ex-stock
Jaipur
Industrial Applications
Warehouse pallet stacking & narrow-aisle racking
Automotive component feeding and WIP transfer
Pharmaceutical clean-room material movement (SS pallet truck)
Food & beverage keg / drum handling
Injection-mould & die change in plastics shops
Paper-roll lifting for printing & packaging plants
Logistics hubs & cold-storage dock operations
Technical Specifications — System‑Wide
Parameter
Typical Value
Rated
500 kg – 5 t (model-specific)
Max Lift Height
3 m (manual) · 5.5 m (electric reach)
Fork Length Options
900 mm · 1 150 mm · custom
Battery (Electric Units)
24 V / 160–210 Ah, maintenance-free
Hydraulic Pump
Integral manual or AC/DC power-pack
Hydraulic Pump
4.5 km/h loaded · 5.3 km/h unloaded
Turning Radius
4.5 km/h loaded · 5.3 km/h unloaded
Wheel Material
PU standard; nylon or rubber optional
Manual vs Semi-Electric vs Electric — Which Stacker Do You Need?
| Parameter | Manual Hydraulic Stacker | Semi-Electric Stacker | Electric Walkie Stacker |
|---|---|---|---|
| Lift mechanism | Manual pump — operator pumps handle to raise load | Battery-powered lift — electric motor raises load | Battery-powered lift and drive — fully motorised |
| Travel (horizontal) | Operator pushes manually | Operator pushes manually | Electric drive — operator walks behind |
| Best for | Occasional lifting, no power supply available, lowest cost | Daily use, frequent lifting, reducing operator fatigue | High-cycle warehouse, fastest throughput, least operator effort |
| StackEasy models | SE-MS10, SE-MS20 | SE-SS15, SE-SS20 | SE-ERS12 |
| Capacity range | 500 kg – 2 t | 500 kg – 2 t | 1.2 t – 1.6 t |
| Max lift height | 1.6 m – 3.0 m | 2.5 m – 4.5 m | 3.5 m – 5.5 m |
| Running cost | Nil | Battery charge per shift | Battery charge per shift |
| Purchase cost | Lowest | Mid-range | Highest |
Why Choose StackEasy?
Single Indian brand covering manual, semi-electric and fully electric solutions.
Heavy mast & pump sections with 30 % safety factor above rated load
Custom shop for non-standard forks, stainless frames, EX-proof variants.
Shared components across models ensure quick spare-parts turnaround.
12-month warranty + optional AMC for worry-free ownership.
Why Buy from Ahuja Group?
For manufacturing plants requiring both material handling and compressed air infrastructure, Ahuja Group also designs, supplies and installs aluminium compressed air pipeline systems — single-source for two core factory utilities.
Authorised StackEasy dealer with live demo fleet in Jaipur
Site survey & equipment sizing to match pallet, aisle and lift-height needs.
Factory-trained technicians for commissioning, battery maintenance & operator training.
Rental / “try-before-buy” programme to validate fit.
24 × 7 breakdown response and replacement-unit dispatch* for critical operations
Frequently Asked Questions
What is a hydraulic stacker and what is it used for?
A hydraulic stacker is a manually operated material handling device that uses a hydraulic pump mechanism to raise loads vertically for stacking on racking or loading vehicles. The operator pumps the handle to generate pressure and uses the release valve to lower the load. StackEasy manual hydraulic stackers are used in factories, warehouses, and logistics operations for load heights up to 3 metres. Available in 500 kg to 2 t capacity.
What is the difference between a hydraulic stacker and a semi-electric stacker?
A hydraulic stacker uses manual pump action for lifting — the operator pumps the handle to raise the load. A semi-electric stacker uses a battery-powered electric motor for lifting, eliminating the pumping effort, while the operator still pushes the unit manually across the floor. Semi-electric stackers are recommended for operations with frequent daily lifting cycles where operator fatigue is a concern. StackEasy semi-electric stackers are available in the SE-SS15 and SE-SS20 models.
What is the difference between a hand pallet truck and a stacker?
A hand pallet truck lifts a pallet just enough to clear the floor surface — typically 150–200 mm — for moving loads horizontally. A stacker lifts loads to full racking or loading height, from 1.6 m to 5.5 m depending on the model. Pallet trucks are for moving; stackers are for lifting and placing at height. StackEasy supplies both: hand pallet trucks (SE-HPT25, SE-HPT30) and the full stacker range.
How much does a pallet truck or stacker cost in India?
StackEasy hand pallet trucks start from approximately ₹8,000–15,000 for standard 2.5 t capacity models. Manual hydraulic stackers range from approximately ₹25,000–70,000 depending on capacity and lift height. Semi-electric stackers range from approximately ₹70,000–1,20,000. Contact Ahuja Group at +91-70235-40310 or [email protected] for current pricing, as costs vary by model and quantity.
Does Ahuja Group supply StackEasy equipment across India?
Yes. Ahuja Group is an authorised StackEasy dealer supplying the complete range — hydraulic stackers, semi-electric stackers, electric stackers, hand pallet trucks, scissor lift tables, and drum handling equipment — to manufacturing plants, warehouses, pharmaceutical facilities, and logistics operations across Rajasthan. Our facility is at B-85, Bais Godam Industrial Area, Jaipur 302006. Contact us at [email protected] or +91-70235-40310.
Do you offer custom fork lengths or attachments?
Yes. StackEasy offers custom shop options including non-standard fork lengths, reel rams for paper-roll handling, drum clamps, stainless steel frames for food and pharmaceutical environments, and EX-proof variants for hazardous area classifications. Contact Ahuja Group to discuss your specific requirement and we will advise on the appropriate StackEasy model and configuration.
Ready to move more with less effort?
☎ +91 7023540310 | ✉ [email protected]
Book a free on‑site material‑handling audit and StackEasy demo.
