Quick Air
Stainless‑Steel Modular Compressed‑Air Pipeline
Introduction
Quick Air® stainless‑steel (SS 304/316) modular piping is engineered for plants that demand the highest hygiene, chemical resistance and fire‑safety from their compressed‑air or inert‑gas lines. The smooth‑bore, full‑bore design eliminates rust, scaling and silicone contamination often seen with galvanised or painted carbon‑steel. Push‑fit couplings (20 – 63 mm) and integrated heavy‑duty fittings (3 – 8 inch) reduce installation labour by up to 70 %, while maintaining leak‑tight performance at 20 bar and up to 200 °C
Dealership Certification
Quick Air – Premium Aluminum Piping Systems for Compressed Air
Ahuja Group is an authorized channel partner of Quick Air, a globally trusted brand for aluminum piping solutions. Quick Air systems are engineered for high efficiency, corrosion resistance, and quick installation — ideal for compressed air, vacuum, and inert gas applications. We deliver reliable, leak-proof, and modular piping systems that enhance plant productivity and reduce energy losses across industrial facilities

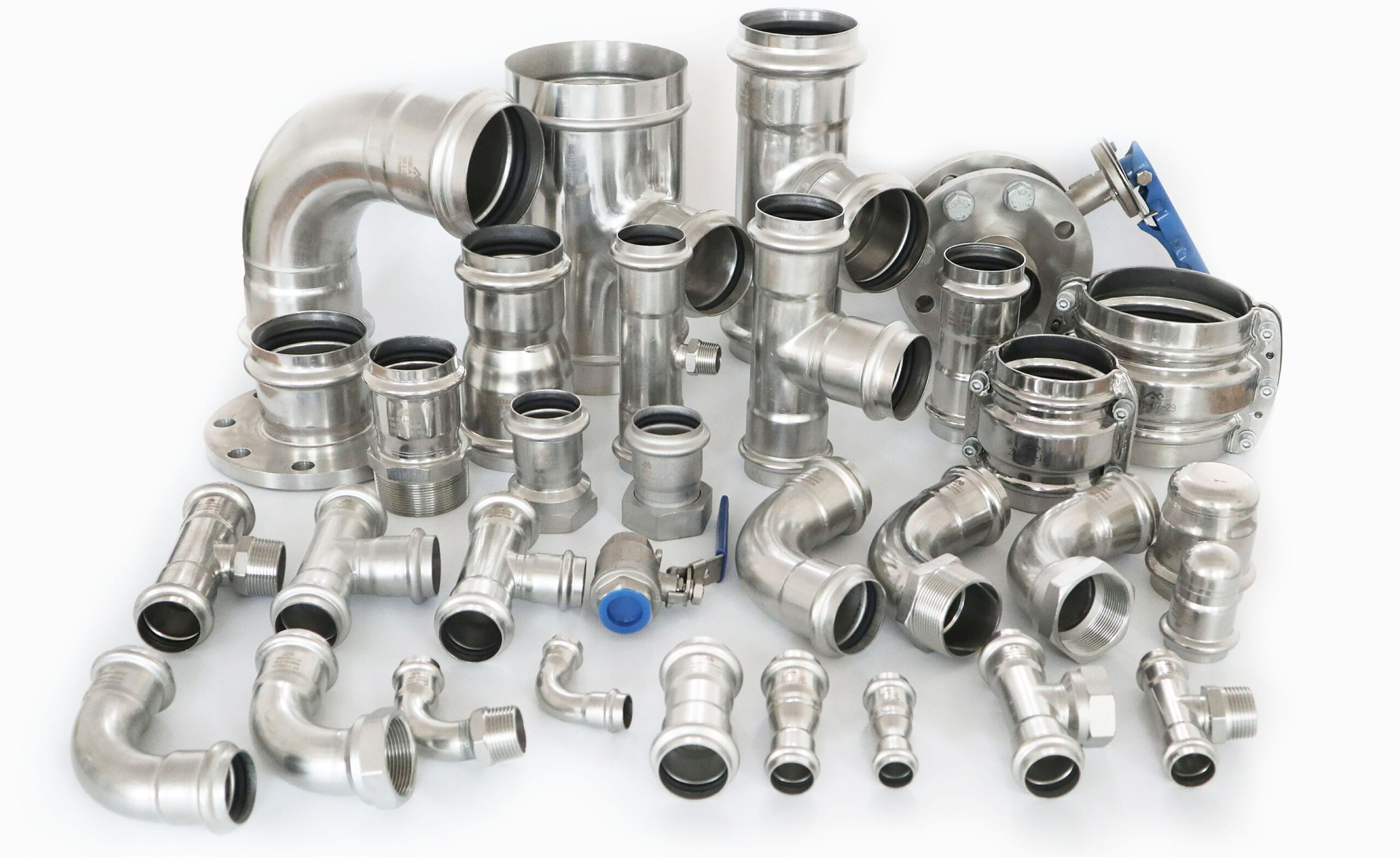

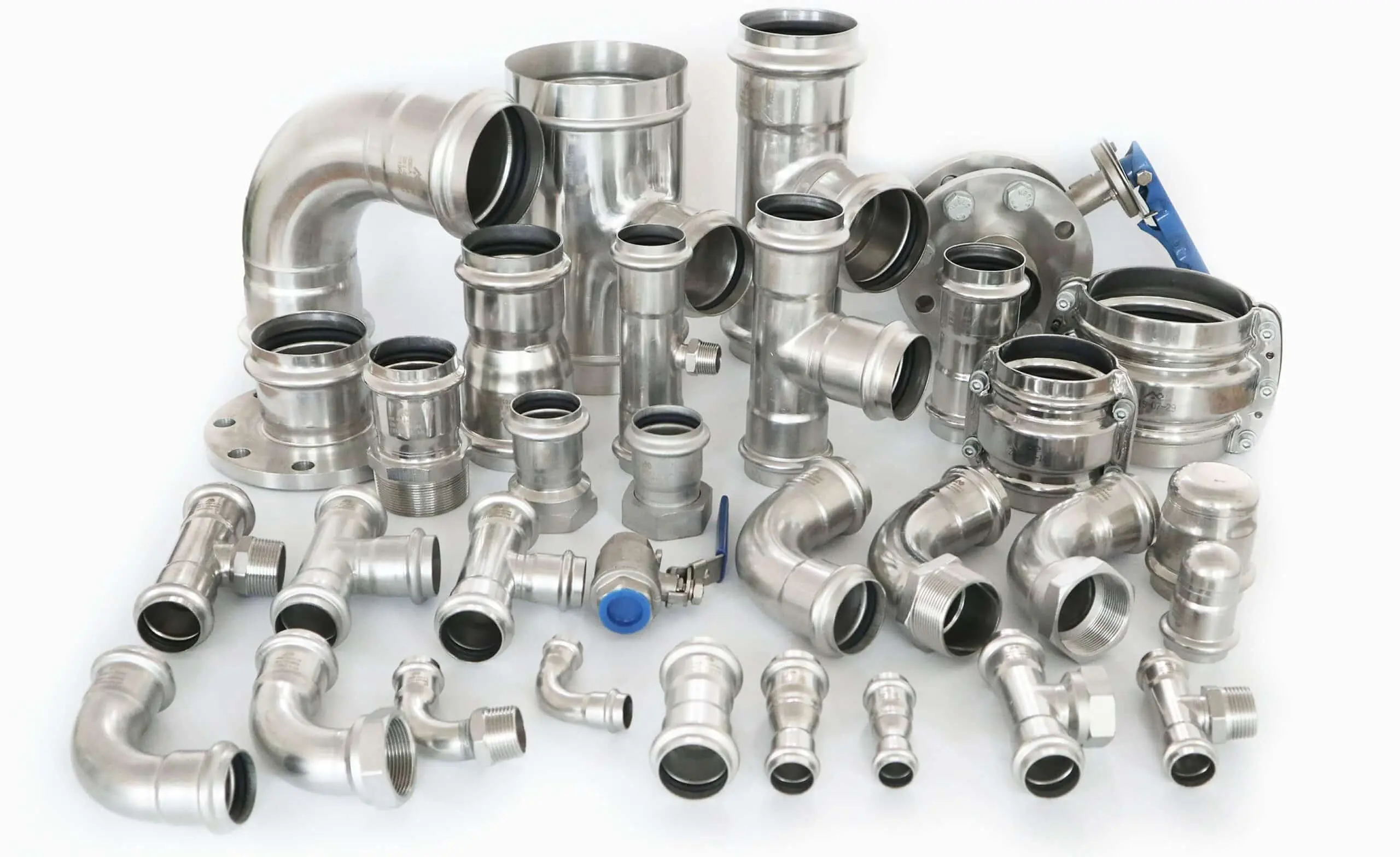

Product Portfolio
Stainless‑Steel Pipes
TP304/316, 20 – 63 mm (push‑fit) and 3″–8″ (integrated), 20 bar rating.
Push‑Fit SP Series Fittings
stainless body with engineering‑plastic cap for rapid installation.
Integrated SA Series Fittings
solid‑SS elbows, tees, reducers and drops for heavy‑duty lines.
Isolation & Control Valves
stainless ball and butterfly valves, drain cocks, indicators.
Loop Drops & Manifolds
pre‑tapped BSP/NPT blocks for tool or machine drops.
Flexible Connectors
SS‑braided or EPDM hoses for vibration isolation.
Mounting Hardware
stainless brackets, pipe clips, colour‑coded tags.
Assembly Tools & Spares
tube cutters, deburrers, O‑ring kits, calibrated torque spanners.
Products

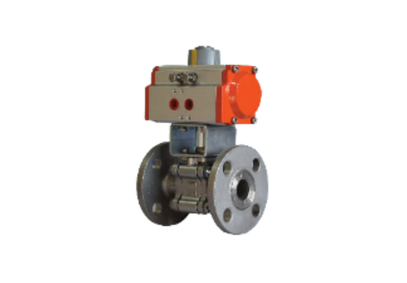

Flange End Butterfly Valve with Actuator
Flange End Butterfly Valve with Actuator

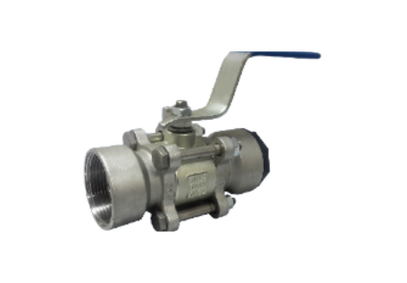

Push Fit Ball Valve with Female Thread
Push Fit Ball Valve with Female Thread

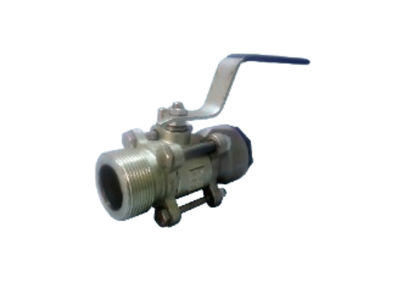

Push Fit Ball Valve with Male Thread
Push Fit Ball Valve with Male Thread

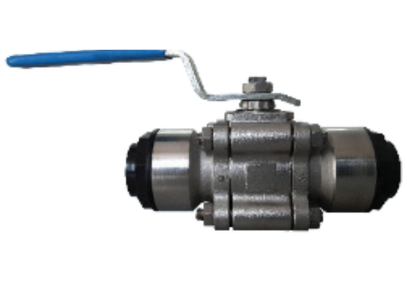

Push Fit In Line Ball Valve
Push Fit In Line Ball Valve

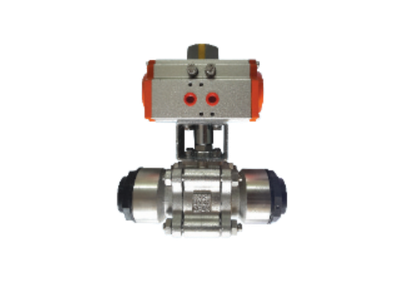

Push Fit Valve with Actuator
Push Fit Valve with Actuator

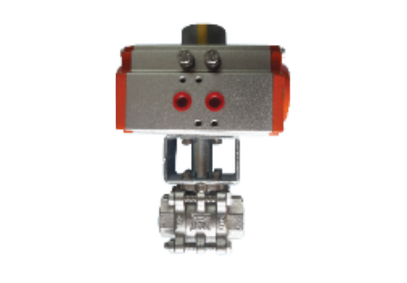

SS Ball Valve with Actuator
SS Ball Valve with Actuator

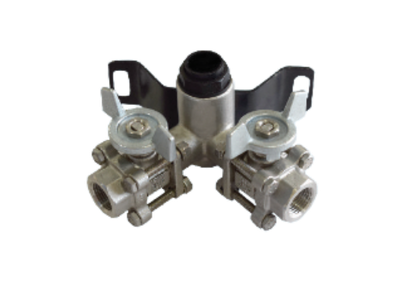

Wall Mounted Double Ball Valve
Wall Mounted Double Ball Valve

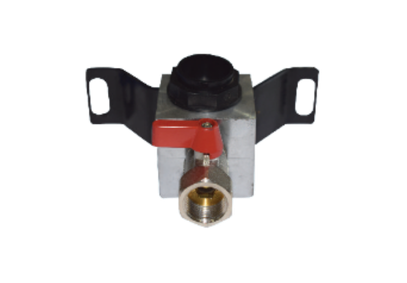

Wall Mounted Valve
Wall Mounted Valve

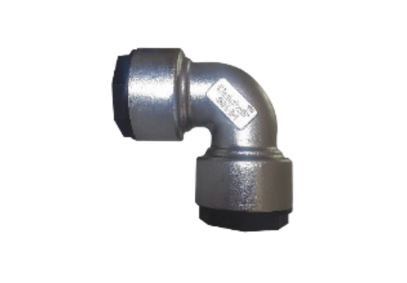

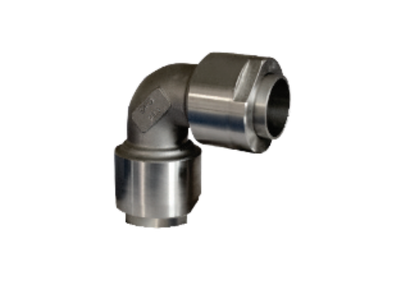

Push Fit Elbow
Push Fit Elbow

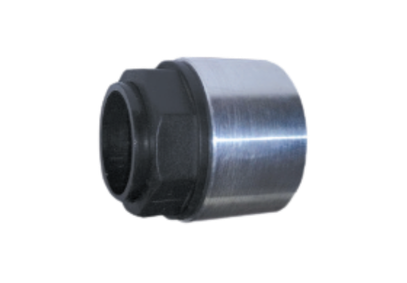

Push Fit End Cap
Push Fit End Cap

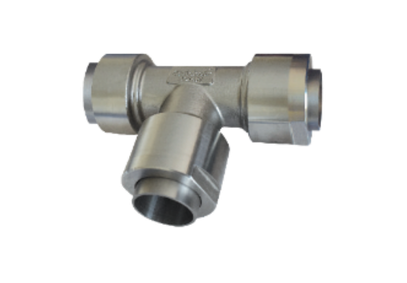

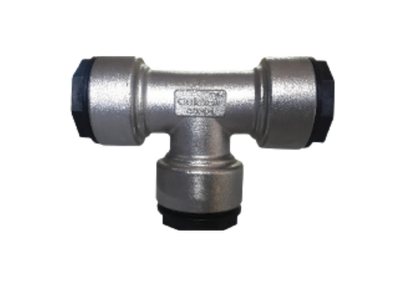

Push Fit Equal Tee
Push Fit Equal Tee

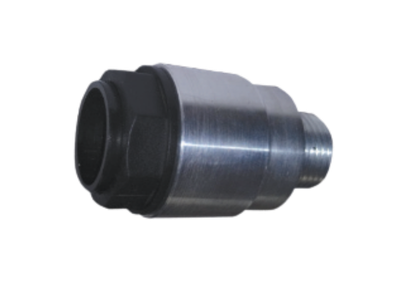

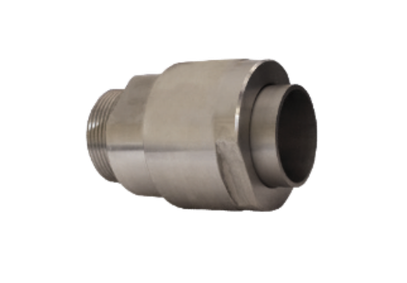

Push Fit Male Connector
Push Fit Male Connector

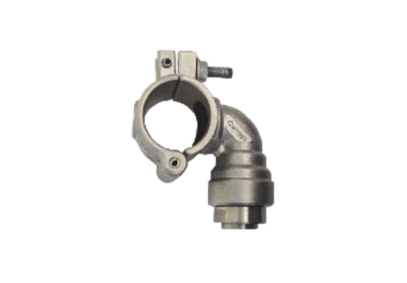

Push Fit Male Droplet
Push Fit Male Droplet

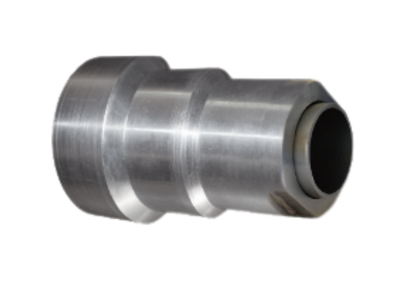

Push Fit Reducer
Push Fit Reducer

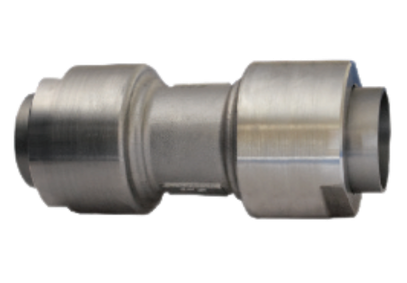

Push Fit Union
Push Fit Union

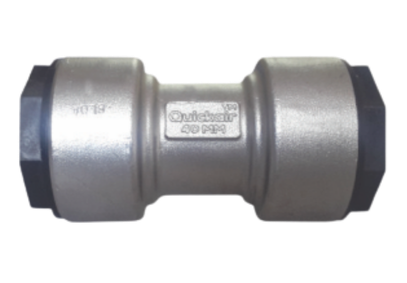

Push Fit Coupler
Push Fit Coupler
Push Fit Elbow
Push Fit Elbow
Push Fit End Cap
Push Fit End Cap
Push Fit Equal Tee
Push Fit Equal Tee

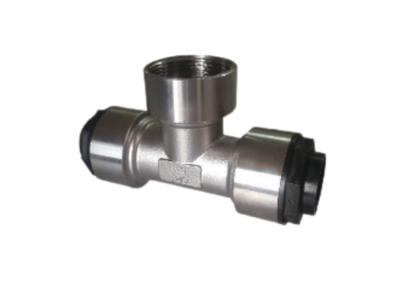

Push Fit Female Tee
Push Fit Female Tee
Push Fit Male Connector
Push Fit Male Connector

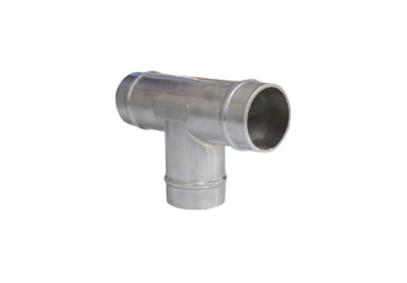

Integrated Tee
Integrated Tee
Integrated Coupler
Integrated Coupler
Integrated Droplet (2)
Integrated Droplet (2)
Integrated Reducing Tee
Integrated Reducing Tee
Integrated Elbow
Integrated Elbow
Integrated Flange
Integrated Flange

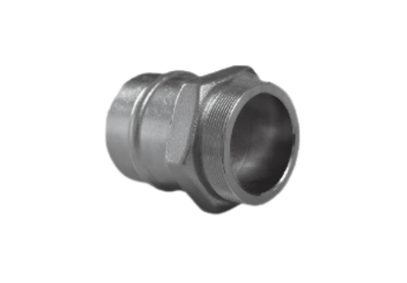

Integrated Male Connector
Integrated Male Connector

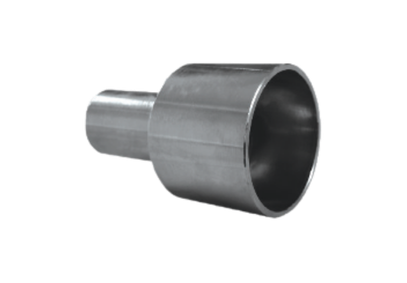

Integrated Reducer
Integrated Reducer

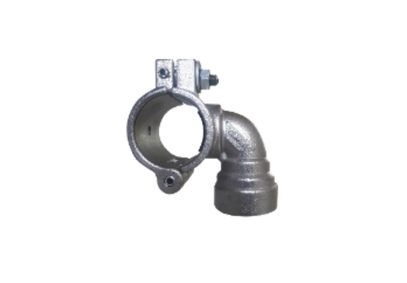

Integrated Droplet
Integrated Droplet

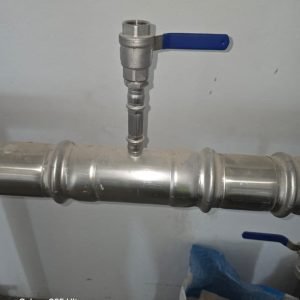

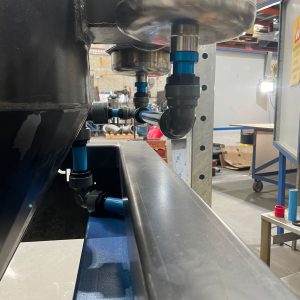

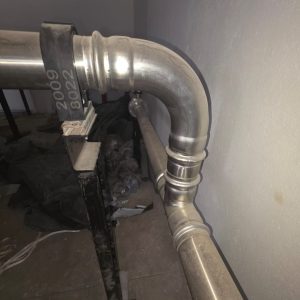

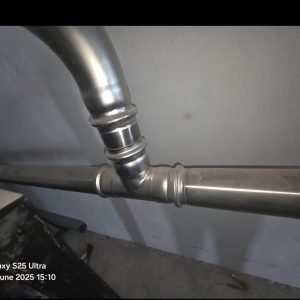

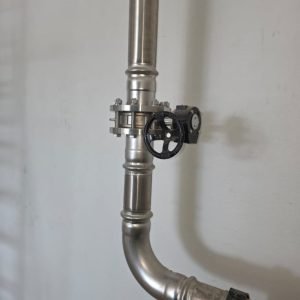

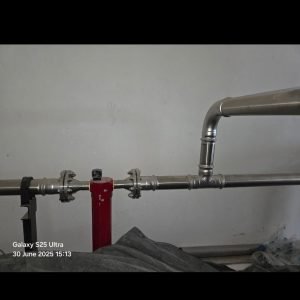

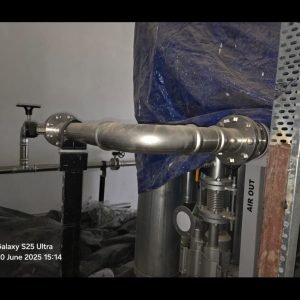

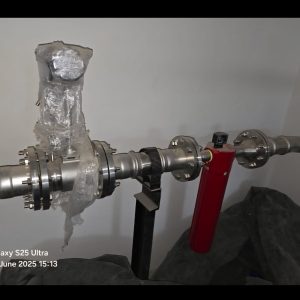

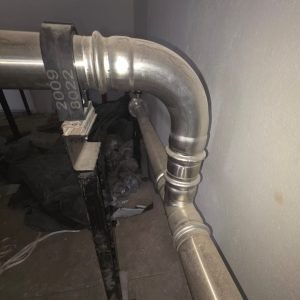

Our Installation
Catalogues
| Image | Title | Type | Size | Counter | Link |
|---|---|---|---|---|---|
|
|
pdf |
13 MB |
0 |
||
|
|
pdf |
14 MB |
2 |
Key Features & Technologies
-
Dual fitting families:
• SP Series – push‑fit, SS body + engineering‑plastic cap, 20 – 63 mm
• SA Series – integrated solid‑SS fittings, 3″– 8″ - Corrosion‑proof AISI 304/316 tube (ASTM A269) resists de‑ionised water, CO₂, nitrogen and food‑grade air.
- Laminar flow – low Ra ≤ 0.8 µm + full‑bore couplings = minimal pressure drop.
- No hot‑work – pipe is simply cut, deburred and pushed; zero welding fumes or fire permits.
- 10‑year manufacturer warranty when installed with genuine Quick Air fittings.
- Reusable & expandable – fittings can be dismantled and re‑used during layout changes.
- Certified to ASME B31.1/3 & PED 2014/68/EU; ISO 9001:2015 production.
Typical Applications
Clean‑room & semiconductor CDA networks
Food & beverage plants (wash‑down zones)
Pharmaceutical & biotech compressed air / nitrogen
Fire‑safe air lines in paint booths & spray zones
Offshore or coastal facilities with high salinity
Breweries & CO₂ distribution manifolds
Chemical & solvent handling plants
Technical Specifications — System‑Wide
Parameter
Specification
Pipe Material
Seamless aluminium alloy 6063-T5, blue powder-coat (RAL 5012)
Outside-Diameter Range
20 mm – 205 mm (nominal)
Working Pressures
• PN 20 line: 0 – 20 bar (g) • PN 40 line: 0 – 40 bar (g)
Vacuum Rating
Up to −29.3 inHg (−990 mbar)
Operating Temperature
−20 °C to +180 °C continuous (short peaks to +200 °C)
Joint Sealing
Dual-lip HNBR O-rings; EPDM / Viton® options for high-temp or chemical duty
Internal Surface Roughness
≤ 0.8 µm Ra → full-bore, laminar flow
Compatibility
Compressed air, nitrogen, CO₂, argon, inert gases, vacuum
Standards & Compliance
ASME B31.1 / B31.3 • PED 2014/68/EU • ISO 8573 air-quality compatible
Colour Coding
Factory blue for compressed air; other colours (grey, black) on request
Warranty
10 years against manufacturing defects when installed by authorised technicians
Why Choose Quick Air SS?
Hygienic & non‑contaminating
ideal for food, pharma and ISO 14644 clean‑rooms
Fire‑resistant
stainless steel eliminates melting or toxic fumes.
Long‑term ROI
zero internal corrosion maintains compressor efficiency and ISO 8573 air quality
Global references
over 26 years and 1 000 + stainless networks installed worldwide.
Global references
valves, loop drops, manifolds and FRLs in matching steel.
Why Buy from Ahuja Group?
Rajasthan’s only authorised Quick Air SS dealer with factory‑trained crew.
In‑house CFD & pressure‑drop calculation for right‑size pipe selection.
Ready Stock of Popular Models & Spares
Local stock up to 2½″ OD with express sourcing for 3″–8″ specials.
Turn‑key erection with no‑spark installation—ideal for ATEX hazardous zones.
24 × 7 service, leak‑audit support and backup rental compressors during shutdowns.
Frequently Asked Questions
Is 40 bar stainless steel available?
Current stainless range is certified to 20 bar. For 40 bar PET applications choose Quick Air aluminium PN 40 or consult us for SS booster headers.
Can I mix stainless with Quick Air aluminium lines?
Yes—standard transition unions let you step from SS to aluminium or PEX safely.
What tools are required for installation?
A tube‑cutter, deburring tool and calibrated torque wrench—no welding or threading needed.
How do I clean the pipes before commissioning?
Factory‑clean tubes need only nitrogen purge; ISO 14644 validation available on request.
Do fittings need periodic re‑tightening?
No. The grab‑ring and O‑ring maintain seal for life; annual leak checks are sufficient.
Ready for a corrosion‑free, food‑grade compressed‑air network?
Send us your line layout or call +91 7023301222 for a FREE stainless‑steel piping design & energy‑savings audit delivered within 48 hours.
